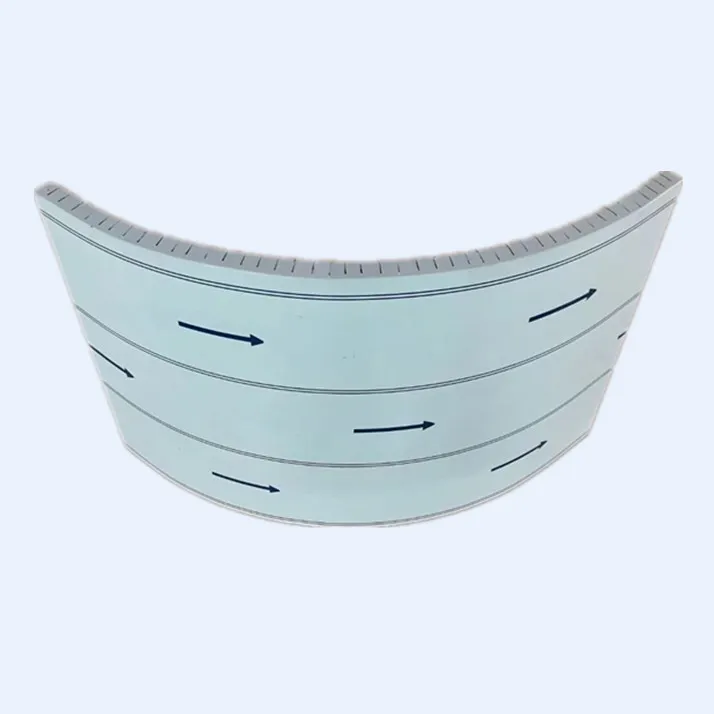

Nkhaus Aluminium Honeycomb Panels

HWSTRONGER aluminium honeycomb panels yog tsim los ntawm kev lag luam aluminium alloy 3003 series thiab 5000 series. Daim ntawv txhuas yog sib zog ua ke nrog cov tub ntxhais honeycomb nrog ob lub tshuab ua kua hluav taws los yog lub siab kub ppolyurethane kua nplaum. Lub ci ntsa iab yog ib puag ncig thiab tsis muaj tshuaj lom neeg tom qab thaum lub caij ntuj sov lossis tom qab hlawv.

Xa kev nug

Khoom Taw qhia

Nkhaus Aluminium Honeycomb Panels

Txheeb ntawm aluminium honeycomb panels

Aluminium honeycomb vaj huam sib luag yog ib hom kev sib xyaw cov ntaub ntawv uas tau ua los ntawm ob daim ntawv txhuas txhuam nrog hornagonal aluminium honeycomb core hauv. Aluminium honeycomb vaj huam sib luag yog qhov zoo tshaj plaws tov rau sab nrauv phab ntsa cladding thaum zoo meej hnyav-zog piv yuav tsum tau.

Cov khoom ntawm txhuas honeycomb panels

Qhov deg ntawm txhuas ntawm cov kav hlau npuas av

Kev txhuas ua ke ntawm cov npauj npaim muaj nyob hauv natural aluminium xim nrog zeb tiav. Ntau hom kev kub ntxhov yuav ua tau xaiv thaum cov khoom siv poom ntim hauv cov cheeb tsam sib txawv.

Thaum txhuas honeycomb panels siv nyob rau hauv tha xim decorations, aluminium tawv yuav tsum tau PE coated rau hauv tej RAL xim.

Thaum txhuas honeycomb panels siv rau sab nrauv phab ntsa claddings, saum aluminium tawv yuav tsum PVDF coated rau huab cua tsis kam. Muaj ntau hom xim rau koj xaiv, xim hauv RAL daim qauv xim thiab Panton xim daim ntawv, ntoo zoo nkauj, pob zeb kev ntxhib los mos, thiab lwm yam xim twg koj xav tias yuav ua tau rau cov ntawv txhuas.

Dhau li ntawm, cov txhuas honeycomb panels ntws yuav ua tau anodized, chromated processed, perforated thiab lwm yam.

Peb cov khoom khwv muag ntawm txhuas honeycomb panels

Cov duab ntawm txhuas honeycomb panels

Ordinary flat honeycomb panels

curved honeycomb panels

CNC cutted honeycomb panels nyob rau hauv puag ncig duab, hexagonal duab, lwm yam zoo li

Qhov ntev ntawm txhuas honeycomb panels

Vaj huam sib luag loj: 1220x2440mm, 1500x3000mm, max. qhov loj 2000x10000mm.

Vaj huam sib luag: Ntawm 4 hli mus txog 200 hli. Nrig thickness 10mm, 12mm, 15mm, 20mm, 25mm, 30mm

Aluminium tawv: 3003 los sis 5052 hlau, thickness 0.5mm, 0.7mm, 0.8mm, 1.0mm, lwm yam.

Cov ntaub ntawv ntawm kev xa duab ntawm txhuas honeycomb panels

Cov Khoom Siv	6 hli	10 hli	15 hli	20 hli	25 hli
Moment ntawm Inertia kuv [cm ⁴ / m]	1.01	3.13	10.78	19.85	31.67
Seem Modulus W [cm ³ / m]	2.63	4.63	14.00	19.00	24.00
Rigidity EI [cm ² / m]	7'100	21'900	75'500	139'000	221'700
Alloy / Temper of Cover Sheet	A3003 H18 / A3003 H16 / A5052 H34
Tensile Lub zog ntawm daim ntawv npog [N / mm ² ]	R _m ≥125			R _m ≥220
Ntawv Pov thawj [N / hli ² ]	R _p0.2 ≥80			R _p0.2 ≥130
Kev Txawj Nyoog [%]	IB ₅₀ ≥5%			IB ₅₀ ≥10%
Modulus ntawm Elasticity [N / hli ² ]	7,000 kg / hli ²
Tawm Thermal Expansion	2.4 hli / m ntawm 100 ℃ kub qhov txawv
Kub Resistant	Kwv yees li - 40 ℃ rau + 80 ℃
Lub Plhaub Teeb Dej Nqa α _s	0.05			0.05
Airbone Sound Insulation Index RW [d / b]	21	21	22	23	25
Thermal Conductivity λ [w / m 2k]	0.95	1.35	1.78	2.25	2.70
Thermal Resistance R (I / ^) [m ² k / w]	0.0063	0.0074	0.0084	0.0089	0.0093
Kub Hloov Coefficient U (k) [w / m ² k]	5.67	5.64	5.605	5.59	5.575

Ntim thiab sij hawm luv luv:

Yuav muaj cov yeeb yaj kiab tiv thaiv rau ntawm vaj huam sib luag, tom qab ntawd cov phiaj yuav muab coj los ua ke thiab tau ntim rau hauv qib qib plywood.

Lub sijhawm tus menyuam tuaj yeem siv sijhawm 10-15 hnub, rau kev txiav txim siab tshaj 1000m2, tus menyuam lub sijhawm yog 20-25 hnub.

package of aluminium honeycomb panels.png

FAQ ntawm txhuas honeycomb panels:

Koj puas muaj cov nqi lag luam?

Peb tsis muaj Tshuag ntawm cov khoom tiav, tab sis peb muaj cov khoom ntawm cov khoom ci cov cij, yog li peb muaj peev xwm muab cov panels hauv lub sijhawm luv luv.

Dab tsi yog qhov tsawg kawg nkaus kom muaj nuj nqis?

Peb MOQ yog 100m 2, tab sis qhov nyob ntawm koj cov lus qhia, yog tias peb muaj cov ntaub ntawv hauv Tshuag, peb tuaj yeem ua qis dua peb cov nqi MOQ.

Koj puas muaj kev kuaj dawb?

Yog peb muab cov qauv dawb, tab sis thov txhawb cov courier cov nqi.

Koj puas muaj cov neeg xa tawm txawv tebchaw?

Los ntawm tam sim no peb tsis muaj lwm tus neeg sab nraud. Yog tias koj muaj kev xav tau thov hu rau peb ncaj qha.

Dab tsi yog koj lub peev xwm txhua xyoo?

Peb txhua txhua xyoo muaj peev xwm ntawm cov khoom vaj khoom tsev aluminium ntau tshaj 200,000 square meters.

Koj puas muaj QC los tswj qhov zoo?

Yog peb tuaj yeem ua tau QC los tshawb xyuas cov ntaub ntawv zoo thaum tsim khoom thiab xyuas cov khoom tiav ua ntej yuav ntim.
