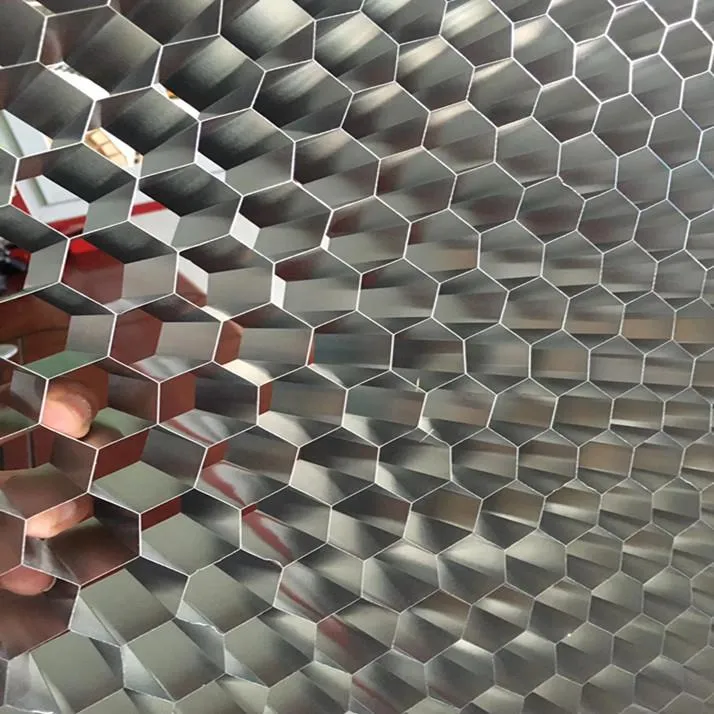

Hluav Taws Xob Txheej 3003/5052 Alloy Txhuas Honeycomb Cores

Suav Main Tsum ntawm 3003 hlau thiab 5052 alloy Txhuas Honeycomb Cores rau Aluminium Honeycomb Panels

Xa kev nug

Ces

Khoom Taw qhia

Aluminium honeycomb core yog ib hom khaus, hluav taws kub thiab siab zog lub tsev ntaub ntawv. Aluminium honeycomb cores yog ua los ntawm cov qib zoo aluminium alloy 3003 los yog 5052 series. Cov kua honeycomb feem ntau yog xa hauv unexpanded daim ntawv los cawm txav chaw thiab nws yuav tsum txhab ntawm tes ntawm koj qhov chaw.

Nrog high density honeycomb cores, nws yuav tsum tau expanding tshuab los nthuav, peb kuj muag lub honeycomb tub ntxhais expanding tshuab yog tias tsim nyog.

Ntau cov txheej txheem ntawm txhuas honeycomb cores:

Aluminum honeycomb manufacturing process.jpg

production process of honeycomb core.jpg

Muaj Cov ntsiab lus ntawm txhuas honeycomb cores:

Ntawm (hli)	Cell loj (nti)	Ntawv ci tuab (hli)	Max loj (WxL) (hli)
1.5	1/10	0.03 / 0.04	1200 x 1500
1.83	1/8	0.04	1600x2000
1.83	1/8	0.06	1600 x 1600
2	1/8	0.04	1600x2000
2	1/8	0.06	1600 x 1600
2.5	1/6 (4.2hli)	0.04	1600x2200
2.5	1/6 (4.2hli)	0.06	1600x2000
3.0	1/5 (5 hli)	0.04	1600x2400
		0.06	1600x2200
		0.08	1600x2000
		0.10	1600 x 1800
4.0	1/4 (6.35 hli)	0.04	1600x3100
		0.06	1600x2400
		0.08	1600x2200
		0.10	1600x2000
5.0	1/3 (8.5 hli)	0.04	1600 x 4000
		0.06	1600 x 300
		0.08	1600x2200
		0.10	1600x2000
6.0	3/8 (9.5 hli)	0.04	1600x4600
		0.06	1600x3200
		0.08	1600 x 2800
		0.10	1600x2400
7.5	1/2 (12.7 hli)	0.04	1600 x 6000
7.5	1/2 (12.7 hli)	0.06	1600 x 4000
10	3/4 (19 hli)	0.04	1600x7500
10	3/4 (19 hli)	0.06	1600x5000
12	4/5 (20.3 hli)	0.04	1600 x 9000
12	4/5 (20.3 hli)	0.06	1600 x 6000
15	1 (25.4 hli)	0.04	1600 x 12000
15	1 (25.4 hli)	0.06	1600x7500
20	1 + 3/8	0.04	1600 x 15000
20	1 + 3/8	0.06	1600x100000
30	2	0.04	1600x20000
30	2	0.06	1600 x 15000

Cov nta ntawm HWSTRONGER cov tub ntxhais cov honeycomb:

High rigidity, siab zog

Ruaj thiab zoo nyob zoo

Lub teeb yuag

Cov thermal conductivity tsawg

Lub suab rwb thaiv tsev

100% Recyclable

Ntau yam ntawm cov ntawv thov

Qee cov ntaub ntawv qhia ntawm txhuas me honeycomb cores:

Honeycomb Core	1/4 "	3/8 "	1/2 "	3/4 "	1 "
Qhov hnyav [ kg / mm ³ ]	81	54	38	30	31
Compressive liab qab zog [ kg / hli ² ]	0.47	0.26	0.14	0.09	0.05
Tsoo zog [ kg / hli ² ]	0.19	0.08	0.05	0.03	0.02
Txoj kev ruaj ntseg [ kg / mm ² ]	36	28	26	21	19
Lub zog muaj zog txaus zog [ kg / hli ² ]	0.50	0.27	0.15	0.09	006
Compressive Stabilized Modulus [ kg / hli ² ]	111	67	31	18	12
