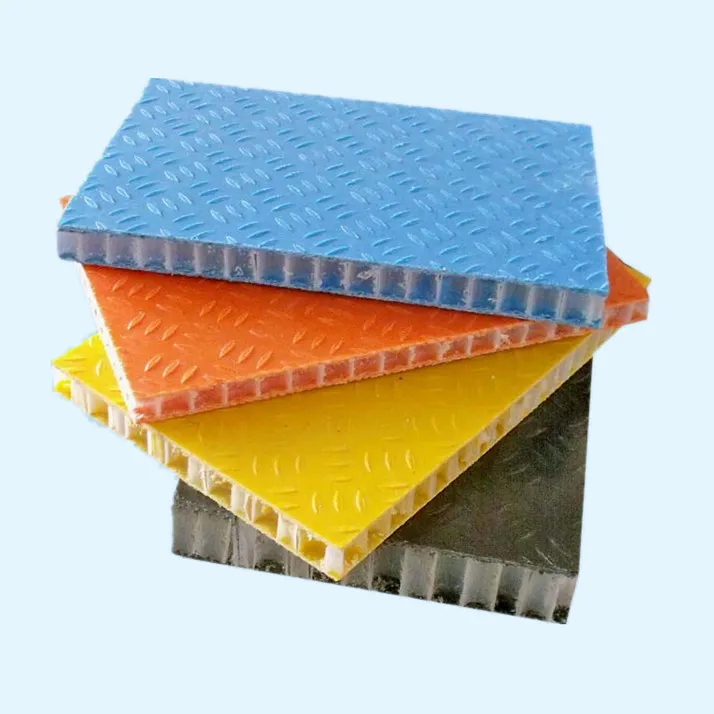

Gel Coat Fiberglass Polypropylene Honeycomb Sandwich Panels

Gel Coated Fiberglass Honeycomb Sandwich Panels rau Cov Tsheb Hauv Lub Tsheb, Cov Shocks, Ships

Xa kev nug

Khoom Taw qhia

Taw qhia ntawm GRP Honeycomb Panels

Peb lub GRP Honeycomb vaj huam sib luag yog tsim los ntawm cov ntawv sab hauv thiab txheej fiberglass ua tawv thiab polypropylene honeycomb hauv sab nraud. Cov tawv nqaij fiberglass yog gel coated nrog txawv xim muaj.

PP Honeycomb core yog ib qho khoom siv polypropylene honeycomb uas sib txuas ua ke, muaj zog thiab resilience. Nws yog tsim rau ntau yam ntawm cov qhaub cij tub ntxhais kawm ntawv hauv marine, tsheb thauj mus los thiab tsim kho kev lag luam. Nws tseem muaj suab nrov zoo heev.


Cov puav txiv honey cov tub ntxhais siv rau cov khoom siv hauv cov khoom nyuaj yog feem ntau nrog cov hlua uas tsis yog-khi kom zoo dua rau daim tawv nqaij.



Techinical Data Sheet ntawm cov tub ntxhais PP honeycomb


Qhov zoo ntawm GRP Honeycomb Panels

1. Lub zog siab tab sis HALF qhov nyhav ntawm FRP / GRP plywood nyuaj vaj huam sib luag
2. Zoo nkauj thiab tsis pom zoo, zoo nkauj thiab zoo tagnrho rau kev sau ntawv
3. Txhim kho kom yooj yim thiab ua kom huv, sai sai
4. Yuav nyob twj ywm "dawb" xyoo tom qab
5. UV thiab khov kho tiv thaiv
6. Lub neej ntev


Daim ntaub ntawv ntawm Gel Coat PP Honeycomb Sandwich Panels

  1. Cov tsheb thauj khoom xauv lub cev, cov phom, cov tub yees txias

  2. Prefabricated lub tsev, mobile tsev

  3. Sab nrauv phab ntsa ntawm cov tuam txhab coj mus muag

  4. Hauv tsev ua luam dej hauv tsev

  5. Chaw nkaum, chav dej da dej thiab lwm yam.


Cov Ntaub Ntawv Cov Ntaub Ntawv ntawm GRP Honeycomb Panels

Tsis yog. Yam khoom Cov ntaub ntawv
1 Static zog Mpa≥ 18
2 Elastic modulus Mpa≥ 1500
3 Barcol hardness ≥ 40
4 Feem ntau lub zog KJ / m² 50
5 Edgewise compressive zog Mpa≥ 10
6 Flatwise nro zog Kpa≥ 450
7 Ncaj nraim kom nrawm nrawm zog Mpa≥ 1.5


Tsis yog. Vaj huam sib luag's thickness (hli) Qhov hnyav (kg / m2)
1 15 7.5
2 18 8
3 21 8.5



Muaj Qhov Loj:

Max. vaj huam sib luag loj: 2800x10000mm

Tus Txheem Chaw Loj: 1220 x 2440mm

Vaj huam sib luag: Ntawm 8 hli mus txog 200 hli, tuab tuab hli 18mm, 20mm, 25mm, 30mm, 35mm.

Fiberglass tawv tawv: Gel co daim tawv nqaij FRP min. thickness 1.2mm, niaj zaus siv thickness yog 1.5 hli thiab 2.0 hli.

Xim: Dawb xim, xim xiav, xim xim thiab lwm yam xim ntawm RAL cov qauv xim


Ntawm ib sab ntawm GRP honeycomb panels, peb kuj tsim lub lag luam FRP plywood sandwich panels, FRP ua npuas ncauj sandwich panels nyiam XPS, PU, ​​EPS los yog PET ua npuas ncauj.


Thov hu rau peb nrog koj cov lus kom ntxaws, peb tuaj yeem hloov lub vaj huam sib luag thickness, vaj huam sib luag loj, xim thiab lwm yam raws li koj daim ntawv thov.
