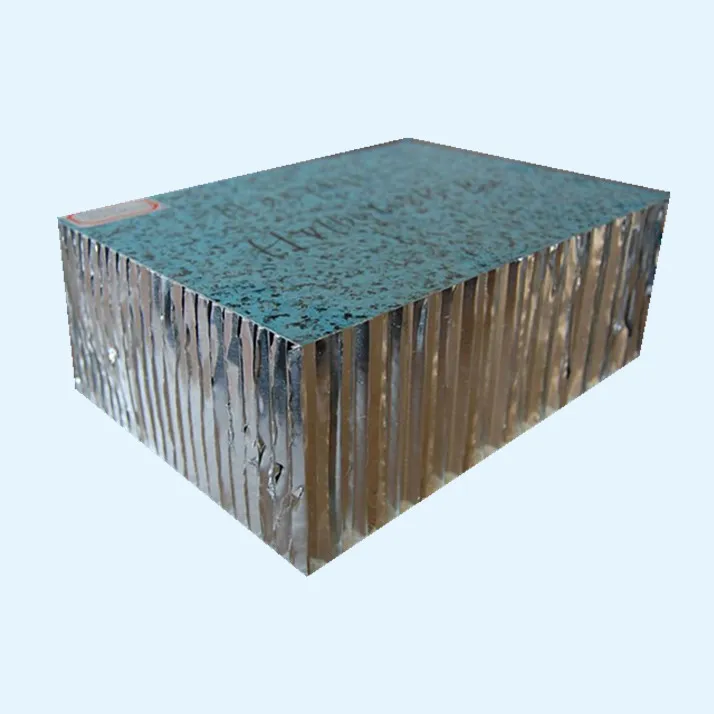

50 hli Tuab Pob Zeb Pom Txhuas Txheem Honeycomb Phab Ntsa Panels

Suav Saum Siab Zoo Hluav Taws Xob Honeycomb Panels rau Tsev Kho Vaj Tse, Phab ntsa Claddings, Nkoj Decorations

Xa kev nug

Khoom Taw qhia

Aluminium Honeycomb Vaj Huam Sib Luag Qhia:

HWSTRONGER Aluminium honeycomb vaj huam sib luag yog ib daim ntawv pov thawj siab ntawm lub vaj huam sib luag ntsej muag nrog lub txhuas txhuas ntawm ob sab thiab txhuas honeycomb sandwiched hauv. Lub vaj huam sib luag yog ib qho hnyav heev thiab tsis muaj hluav taws xob.

Lub hexagonal cell aluminium honeycomb tau zoo tshaj plaws mechanical zog thiab yog muaj peev xwm nqa ntau shear loads ntawm ntau dua hnyav dua foams los yog lwm hom tub ntxhais

Lub ntsej muag lub ntsej muag ntawm lub ntsej muag yuav ua rau aluminium rau xim ntxiv thiab lamination. Nws tuaj yeem ua tau nrog cov xim sib txawv, xim tshwj xeeb xws li ntoo lis thiab pob zeb lis.


Muaj Kev Qhia:

Sab saum toj ntawm daim tawv nqaij tuaj: yuav yog li ntawm 0.3mm mus rau 3.0mm. niaj hnub siv sab saum toj ntawm daim tawv nqaij yog nyob rau hauv 0.5 hli rau ntxiv lamination, prepainted tawv feem ntau yog los ntawm 0.7mm mus rau 1.0mm.

Rov qab txhuas tej tawv nqaij: tuaj yeem yog los ntawm 0.3 hli mus txog 2.0 hli. niaj zaus siv rov qab tawv nqaij yog 0.5 hli.

Core material: Aluminium Honeycomb core, li niaj zaus cell 3/8 nti, cell ntawm 6 hli, ntawv ci tuab 0.06 hli.

Cov Cuab Yeej Siv: A3003 thiab A5052

Tag Nrho cov thickness thickness: Ntawm 4 hli mus txog 300 hli. hom vaj huam sib luag tuab 10mm, 12mm, 15mm, 18mm, 20mm, 25mm thiab 30mm. lwm cov thickness tau customized.

Tus qauv vaj huam sib luag loj: 4ftx8ft (1220x2440mm)

Pom zoo tuab rau nyias daim ntawv sau npe:

Qab nthab: 10 hli thiab 12 hli.

Sab nrauv phab ntsa: 25 hli thiab 30 hli

Sab hauv phab ntsa kho kom zoo nkauj: 12mm, 15mm

Rwb thaiv tsev phab ntsa: 50 hli

Pem Teb Panels: 25mm

Ru sab: 25mm, 30mm, 50mm


Qhov zoo ntawm txhuas honeycomb panels

1) Resistant rau dej, ya raws thiab pwm
2) Resistant mus rau cov kua qaub, cov hauv paus thiab tshuaj muaj zog.
3) Tiv thaiv kom txhab, khawb, thiab cuam tshuam
4) Ib qho yooj yim los ntxuav, tiv thaiv ultraviolet rays
5) Tiv thaiv kom hluav taws, kub, thiab luam yeeb kub
6) Ib puag ncig cov phooj ywg, tsis muaj tshuaj lom, tiv thaiv zoo li qub, tsis muaj hluav taws xob
7) Tsis tshua muaj siab ntev thiab tsis yooj yim rau deform
8) Ntau yam kev ua haujlwm thiab xim

Techinical Data Sheet ntawm Txhuas Honeycomb Pawg

Cov khoom siv	6 hli	10 hli	15 hli	20 hli	25 hli
Moment ntawm Inertia kuv [cm ⁴ / m]	1.01	3.13	10.78	19.85	31.67
Seem Modulus W [cm ³ / m]	2.63	4.63	14.00	19.00	24.00
Rigidity EI [cm ² / m]	7'100	21'900	75'500	139'000	221'700
Alloy / Temper of Cover Sheet	A3003 H18 / A3003 H16 / A5052 H34
Tensile Lub zog ntawm daim ntawv npog [N / mm ² ]	R _m ≥125			R _m ≥220
Ntawv Pov thawj [N / hli ² ]	R _p0.2 ≥80			R _p0.2 ≥130
Kev Txawj Nyoog [%]	IB ₅₀ ≥5%			IB ₅₀ ≥10%
Modulus ntawm Elasticity [N / hli ² ]	7,000 kg / hli ²
Tawm Thermal Expansion	2.4 hli / m ntawm 100 ℃ kub qhov txawv
Kub Resistant	Kwv yees li ntawm 40 ℃ rau + 80 ℃
Lub Plhaub Teeb Dej Nqa α _s	0.05			0.05
Airbone Sound Insulation Index RW [d / b]	21	21	22	23	25
Thermal Conductivity λ [w / m 2k]	0.95	1.35	1.78	2.25	2.70
Thermal Resistance R (I / ^) [m ² k / w]	0.0063	0.0074	0.0084	0.0089	0.0093
Kub Hloov Coefficient U (k) [w / m ² k]	5.67	5.64	5.605	5.59	5.575
