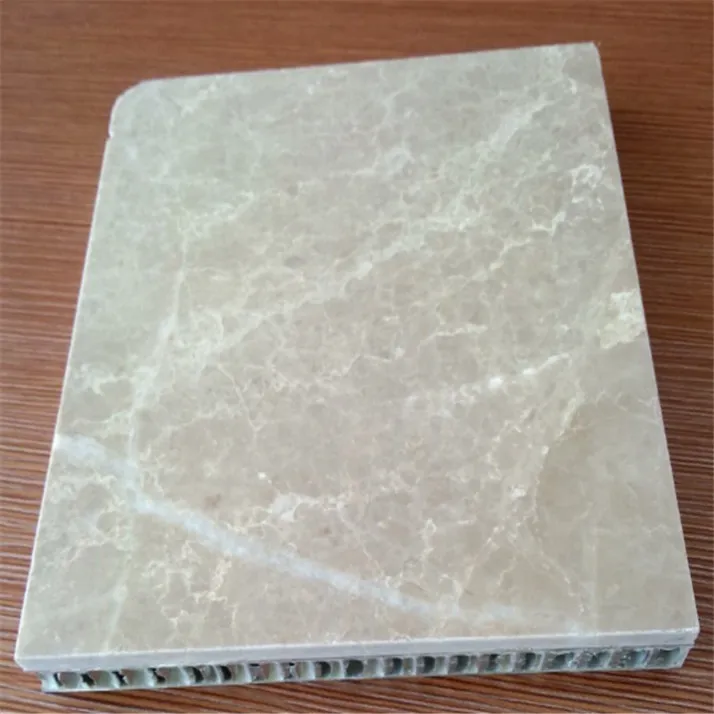

6mm Thick Porcelain Bonded nrog Aluminium Honeycomb Panels rau cov chaw nres tsheb ciav hlau
1. Kev Sau Npe Hluav Taws Xob Khoom Ua Kom Muaj Vaj huam sib luag muaj cov nplais vaj huam sib luag (3mm-10mm) thiab ib qho vaj huam sib luag ntawm cov kav hlau txais phom los yog fiberglass honeycomb vaj huam sib luag. Yam khoom no tswj kev zoo nkauj ntawm cov vuas luaj thaum kov yeej ...
Khoom Taw qhia
1. General Nyob rau hauv tsim
Ceramic honeycomb vaj huam sib luag muaj vaj huam sib luag muaj cov nplais pob zeb (3mm-10mm) thiab ib qho vaj huam sib luag ntawm vaj huam sib luag los yog fiberglass honeycomb vaj huam sib luag, nruj nreem ua ke ua ke los ntawm cov nplaum zaj duab xis. Yam khoom no ua rau kev zoo nkauj ntawm cov vuas looj ntsej muag thaum kov yeej lawv qhov tsis zoo ntawm lub cev thiab hnyav hnyav. Txo daim ntawv txhuas ntawm cov pob zeb veneer thiab cov txhuas hniav ua kom pom tseeb tias cov khoom muaj peev xwm ua haujlwm zoo thiab ua haujlwm zoo.
Pob zeb los yog ceramic aluminium honeycomb vaj tse feem ntau yog ua los ntawm 3-5hli pob zeb glued on 10-25 hli txhuas honeycomb board. Rau sab nraud phab ntsa, pom zoo rau pob zeb txhuas pob zeb ua ke nrog pob zeb thickness ntawm 5-8 hli thiab txhuas honeycomb board thickness tsis muaj tsawg tshaj 25 hli. Rau sab hauv phab ntsa, pom zoo muab pob zeb txhuab zeb honeycomb board nrog zeb tuab ntawm 3-4 hli thiab txhuas honeycomb vaj huam sib luag thickness ntawm 15 mm. Rau lub txee built-in, pom zoo zeb zeb honeycomb board nrog zeb thickness ntawm 3-4 hli, aluminium honeycomb board thickness ntawm 15-20mm.For hauv av, pom zoo pob zeb aluminium honeycomb board nrog pob zeb thickness ntawm 6-10 hli, aluminium honeycomb board thickness ntawm 10-15 hli.
Cov qauv ntawm cov hluav taws xob honeycomb composite panels
2. Txhim kho ntawm cov ntxhuav ntawm cov ntxhuav dawb
Pob zeb Hom | Marble, Granite, Travertine, Sandstone, lwm yam zoo li |
Panels Thickness | 10mm-400 hli |
Pob zeb Thickness | 3mm, 5mm, 6mm, 8mm, 10mm, thiab lwm yam. |
Kev kho pob zeb saum npoo | Nqaij, txhuam, honed, flamed, grooved, muab tshuaj ntxuav, lwm yam zoo li |
Dav: | 300 hli-1200 hli |
Ntev | 300 hli-3000mm |
Max loj | 1500mmx6000mm |
3. Ua haujlwm:
(1) Lub teeb yuag, txheem pob zeb marble honeycomb vaj huam sib luag rau tes taw hnyav li 16kg ib square meter, uas yog 1/5 ntawm hais tias ntawm lub zeb zeb vaj huam sib luag.
(2) Siv kev khov thiab kev muaj peev xwm ntawm kev tawm tsam; nws siv yog 10 npaug ntawm
hais tias ntawm lub natural pob zeb.
(3) Zoo zoo lub suab rwb thaiv tsev thiab cua sov rwb thaiv tsev.
(4) Siv yooj yim rau kev tsim kho, yooj yim rau installation.
(5) Tsawg nyhav, txo lub nra ntawm lub tsev, ua rau kom lub neej txuas ntxiv.
(6) Cov huab cua thiab kev xeb tuaj yeem tiv thaiv.
(7) Tau muab los ua kom zoo, kos duab thiab zoo nkauj thiab lwm yam zoo li dav dav xim, zoo nkauj kho kom zoo nkauj;
(8) Ib puag ncig zoo, ua paug muaj kuab paug, yooj yim los ntxuav thiab ceev kom haum thiab tuaj yeem siv tau.
4.Technical Cov Ntaub Ntawv ntawm cov pob zeb honeycomb panels:
Cov khoom | Cov txheej txheem tsim nyog | ||
W | N | ||
Kev puas tsuaj raug | Tsis pom qhov seem paug | ||
Poob pob tej zaum yuav ua haujlwm | Tsis muaj nplaum los yog puas tsuaj | ||
Phom hnyav feem cuam tshuam | Tsis muaj nplaum los yog puas tsuaj | ||
Flatwise zog nrawm / MPA | ≥0.8 | ≥0.6 | |
Flatwise compressive elastic modulus / MPA | ≥30 | ≥25 | |
Flatwise shear compressive / MPA | ≥0.5 | ≥0.4 | |
Flatwise shear compressive / MPA | ≥4.0 | ≥3.0 | |
Nce toj pob zeb qis zog (N.mm/mm) | Qhov nruab nrab muaj nqis | ≥ 50 | ≥40 |
Yam tsawg kawg nkaus | ≥40 | ≥30 | |
Poob siab tensile nplaum zog MPA | Qhov nruab nrab muaj nqis | ≥1.0 | ≥0.6 |
Yam tsawg kawg nkaus | ≥0.6 | ≥0.4 | |
Flexural lub zog (tus qauv nqi) MPA | Granite | ≥8.0 | - |
Sand pob zeb, Marble, Limestone | ≥4.0 | ||
Flexural rigidity (N.mm2) | Aluminium honeycomb vaj huam sib luag | ≥1.0 x 109 | ≥1.0 x 108 |
Hlau honeycomb vaj huam sib luag | ≥1.0 x 109 | ||
FRP honeycomb vaj huam sib luag | ≥1,5 x 108 | ||
Shearing rigidity / N | ≥1.0 x 105 | ≥1.0 x 104 | |
Kub dej tsis kam | Tsos | Tsis muaj txawv txav | - |
Feem ntau cov feem pua ntawm kev sib zog ua kom muaj zog (%) | ≤ 15 | ||
Kub txawv tsis kam | Tsos | Tsis muaj txawv txav | |
Feem ntau txo feem pua ntawm kev khoov zog (%) | ≤ 20 | ||
Tiv thaiv kom khov | Tsos | Tsis muaj txawv txav | |
Feem ntau cov feem pua ntawm kev sib zog ua kom muaj zog (%) | ≤ 15 | ||
Lus Cim: Qhov dav ntawm cov qauv hauv cov ntawv xeem tawm tsawg tshaj 100 hli. | |||
5. Ntau lawm Txheej Txheem ntawm Pob Zeb Honeycomb Piav Txheem Panels
6. Cov ntawv thov:
Pob zeb honeycomb panels yuav siv tau rau hauv
1. Sab hauv phab ntsa sab hauv thiab sab nrauv, thaiv phab ntsa
2. Rooj tog vaj tog tsev, rooj, thiab rooj
3. Chav dej, chav kho kom zoo nkauj chav ua noj;
4. Cov nkoj tho cov vaj tse sab hauv;
5. Qab nthab, vov tsev & pua plag tsev
6. Nruab nrab (phab ntsa muab faib thiab tso quav tso quav)
7. Kho kom zoo nkauj rau cov chaw ua haujlwm, chaw kav khw, chaw ntiav pw, subway, chaw nres tsheb, tsheb ciav hlau / tsheb nqaj hlau, dav hlau dav hlau
8. Tu chav
9. Lub rooj tsav tsheb
10. Tsheb, Tsheb, Camper, Nkoj, Aerospace Kev Lag Luam
11. Kho kom zoo nkauj thiab ua kom lub txee
7. Ntim thiab Kev Xa Ntawv:
Ntim nrog cov yas ua npuas yas thiab hauv qib qib plywood crates.
Lub Sij Hawm Lub Sij Hawm: 15-30 hnub nyob ntawm seb kev txiav txim ntau npaum li cas
