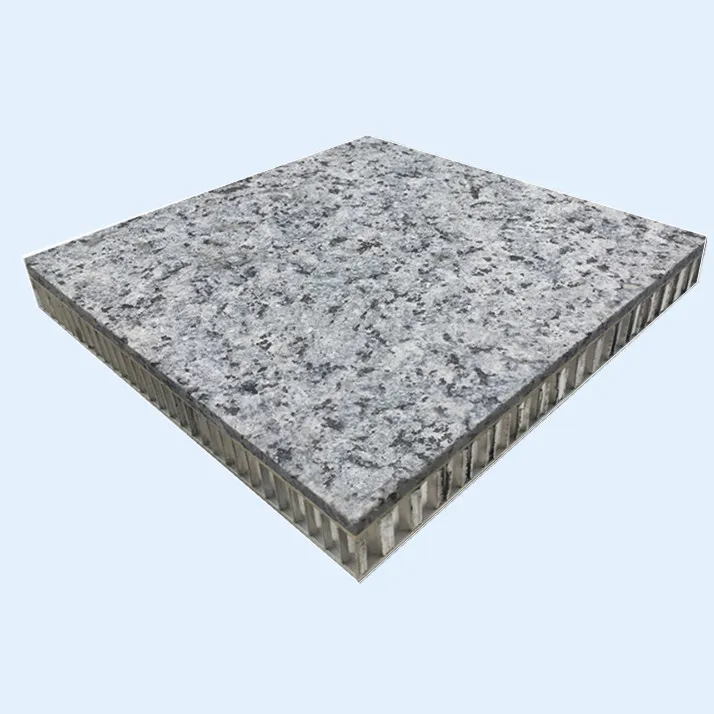

Granite Pob Zeb Honeycomb Composite Panels
HWSTRONGER Pob Zeb Honeycomb Pawg yog ib hom khoom siv high-tech nrog natural granite thiab marble / granite los yog lwm cov pob zeb thiab cov kav hlau txais aluminium honeycomb. Lub vaj huam sib luag tseem qhov kev zoo nkauj ntawm ntuj pob zeb khoom thiab overcomes disadvantages ntawm hnyav, yooj yim mus ua txhaum thiab brittleness ntawm tej yam ntuj tso cov khoom. Qhov zoo tshaj ntawm pob zeb honeycomb vaj huam sib luag yog qhov hnyav tsawg nrog lub zog muaj zog, khov, npliag, suab thiab kev kub kub thiab hluav taws kub, thiab lwm yam.
Khoom Taw qhia
Granite Pob Zeb Honeycomb Composite Panels
HWSTRONGER Pob Zeb Honeycomb Pawg yog ib hom khoom siv high-tech nrog natural granite thiab marble / granite los yog lwm cov pob zeb thiab cov kav hlau txais aluminium honeycomb. Lub vaj huam sib luag tseem qhov kev zoo nkauj ntawm ntuj pob zeb khoom thiab overcomes disadvantages ntawm hnyav, yooj yim mus ua txhaum thiab brittleness ntawm tej yam ntuj tso cov khoom. Qhov zoo tshaj ntawm pob zeb honeycomb vaj huam sib luag yog qhov hnyav tsawg nrog lub zog muaj zog, khov, npliag, suab thiab kev kub kub thiab hluav taws kub, thiab lwm yam.
Pob zeb honeycomb vaj huam sib luag tuaj yeem tsim raws li koj cov specifications rau kev siv ntau yam, xws li phab ntsa tsev (sab nrauv & sab hauv), chav dej thiab chav dej, zom, muab faib, of elevator, rooj, txee sab saum toj thiab lwm rooj tog vaj tse, thiab lwm yam.
Cov qauv ntawm pob zeb honeycomb cais panels:
Granite Honeycomb Vaj Huam Sib Luag
| Tsis tu ncua | Granite slab thickness: 5/8 / 10mm |
| Granite honeycomb vaj huam sib luag loj: 600 * 600/600 * 800/2440 * 1220 * 20mm | |
| Max. Qhov loj | Granite slab thickness: 10mm |
| Granite honeycomb vaj huam sib luag loj: 1500 * 1200 * 30mm | |
| Tsis tu ncua kev kho mob | Nqaij, txhuam hniav, chiselled, honed, grooved, ntxhib-rubbing, lwm yam zoo li |
| Bending | Tau (customized) |
| Daim ntaub ntawv | Phab ntsa cladding (sab nrauv thiab sab nraud), qab nthab, taum, rooj tog vaj tog tsev, chav dai kom zoo nkauj, zom, chav dej, rooj, thiab lwm yam. |
| Kev Pabcuam (MTM) | Tau (xim, ntu kev ntxhib los mos, qhov loj, cov qauv, qauv, lwm yam zoo li no) |
| Tswv Yim Qhia: | |
| 1. Rau sab hauv phab ntsa: 15/20 hli (pob zeb: 5mm); feem ntau siv marble & travertine; ntws kho: ntu polished / matt nto | |
| 2. Rau sab nrauv phab ntsa: 25/28/30 hli (pob zeb: 8mm); feem ntau siv granite & marble nrog tsaus xim; nta tshuaj: txhuam / qhov chaw ntom ntom rau marble | |
HWSTRONGER Txheem Kev Txhim Kho Cov Qauv rau Pob Zeb Honeycomb Pawg (muaj kev txhim kho cov tshuab nruab nrab):
Cov Ntaub Ntawv Kev
Tus Txheej Txheem rau cov vaj huam sib luag pob zeb: Cov Txheej Txheem Kev Ua Lag Luam Suav "Pob Zeb Ntsej Muag Honeycomb Composite Vaj Huam Sib Luag Zoo Rau Lub Vaj Tsev Kho Mob" JG / T 328-2011 Lub Cev Ua Si
| Cov khoom | Cov txheej txheem tsim nyog | ||
| W | N | ||
| Kev puas tsuaj raug | Tsis pom qhov seem paug | ||
| Poob pob tej zaum yuav ua haujlwm | Tsis muaj nplaum los yog puas tsuaj | ||
| Phom hnyav feem cuam tshuam | Tsis muaj nplaum los yog puas tsuaj | ||
| Flatwise compressive zog / Mpa | ≥0.8 | ≥0.6 | |
| Flatwise compressive elastic modulus / Mpa | ≥30 | ≥25 | |
| Flatwise shear compressive / Mpa | ≥0.5 | ≥0.4 | |
| Flatwise shear compressive / Mpa | ≥4.0 | ≥3.0 | |
| Nce toj pob zeb qis zog (N.mm/mm) | Qhov nruab nrab muaj nqis | ≥ 50 | ≥40 |
| Yam tsawg kawg nkaus | ≥40 | ≥30 | |
| Poob siab tensile nplaum zog Mpa | Qhov nruab nrab muaj nqis | ≥1.0 | ≥0.6 |
| Yam tsawg kawg nkaus | ≥0.6 | ≥0.4 | |
| Flexural zog (tus qauv nqi) Mpa | Granite | ≥8.0 | - |
| Sandstone, Marble, Limestone | ≥4.0 | ||
| Flexural rigidity (N.mm2) | Aluminium honeycomb vaj huam sib luag | ≥1.0 x 10 9 | ≥1.0 x 10 8 |
| Hlau honeycomb vaj huam sib luag | ≥1.0 x 10 9 | ||
| FRP honeycomb vaj huam sib luag | ≥1,5 x 10 8 | ||
| Shearing rigidity / N | ≥1.0 x 10 5 | ≥1.0 x 10 4 | |
| Kub dej tsis kam | Tsos | Tsis muaj txawv txav | - |
| Feem ntau cov feem pua ntawm kev sib zog ua kom muaj zog (%) | ≤ 15 | ||
| Kub txawv tsis kam | Tsos | Tsis muaj txawv txav | |
| Feem ntau txo feem pua ntawm kev khoov zog (%) | ≤ 20 | ||
| Tiv thaiv kom khov | Tsos | Tsis muaj txawv txav | |
| Feem ntau cov feem pua ntawm kev sib zog ua kom muaj zog (%) | ≤ 15 | ||
| Lus Cim: Qhov dav ntawm cov qauv hauv cov ntawv xeem tawm tsawg tshaj 100 hli. | |||
Daim ntawv thov
Pob Zeb Honeycomb Vaj Huam Sib Luag tuaj yeem siv rau hauv phab ntsa chav dej, pem teb, txee sab nrauv, sab nrauv los yog sab hauv phab ntsa, qhov chaw, lub tshuab nqa, rooj tog zaum, rooj txawb sab saum toj, thiab lwm yam.
